Used Vmc Machine

Used Vmc Machine
Used Vmc Machine

Used Vmc Machine Specification

  • Accuracy
  • 0.01 mm
  • Frequency
  • 50/60 Hz
  • Machine Type
  • VMC
  • Model No
  • Supermax (specific model may vary)
  • Connectivity Options
  • RS232, USB, Ethernet (based on control unit)
  • Production Capacity
  • Variable
  • Power Rating
  • 10-15 kW
  • Frame Type
  • Rigid welded frame
  • Features
  • Enclosed cabin, automatic tool changer
  • Noise Level
  • Low to Moderate
  • Motor Power
  • 7.5-11 kW (spindle motor)
  • Voltage
  • 380-415V
  • Operating Temperature
  • Ambient/Standard Industrial
  • Lubricating System
  • Automatic lubrication
  • Drive
  • Servo motor drive
  • Cooling System
  • Integrated coolant system
  • Product Type
  • Used VMC Machine
  • Technology
  • CNC (Computer Numerical Control)
  • Power Source
  • Electric
  • Operating Type
  • Automatic
  • Power
  • Approx. 10-15 kW (Varies by configuration)
  • Surface Treatment
  • Painted & Coated
  • Dimension (L*W*H)
  • Approx. 2800mm x 1800mm x 2100mm
  • Weight (kg)
  • Approx. 3000 kg
  • Color
  • White/Blue
  • Usage & Applications
  • Metalworking, Precision Machining, Tooling
  • Doors
  • Sliding Front Doors
  • Operator Interface
  • Digital display, keypad
  • Number of Tools in ATC
  • 16-24
  • Coolant Tank Capacity
  • 80 Liters
  • Availability
  • Immediate
  • Safety Lock
  • Yes
  • Year of Manufacture
  • Unknown/Used
  • Lubrication Type
  • Automatic Centralized
  • Condition
  • Used/Good working
  • Travel (X, Y, Z)
  • X: 850mm, Y: 500mm, Z: 600mm
  • Milling Capability
  • High Precision
  • Maintenance
  • Periodic, as per industrial standards
  • Table Size
  • Approx. 900mm x 500mm
  • Tool Changer
  • Automatic
  • Spindle Speed
  • Variable (programmable)
  • Enclosure
  • Full Safety Enclosure
  • Machine Certification
  • CE
  • Spindle Type
  • Vertical Spindle
  • Software
  • CNC compatible with major CAM applications
  • Workpiece Capacity
  • Medium-sized parts



About Used Vmc Machine

X Axis Travel 1000 mm
Table Size 1200X550mm
Manufacture Year 2001
Spindle Speed 8000 rpm
ATC Tool Capacity 24 tools
Control System FANUC
Spindle Taper BT40
Guideway Type Mixed guideways

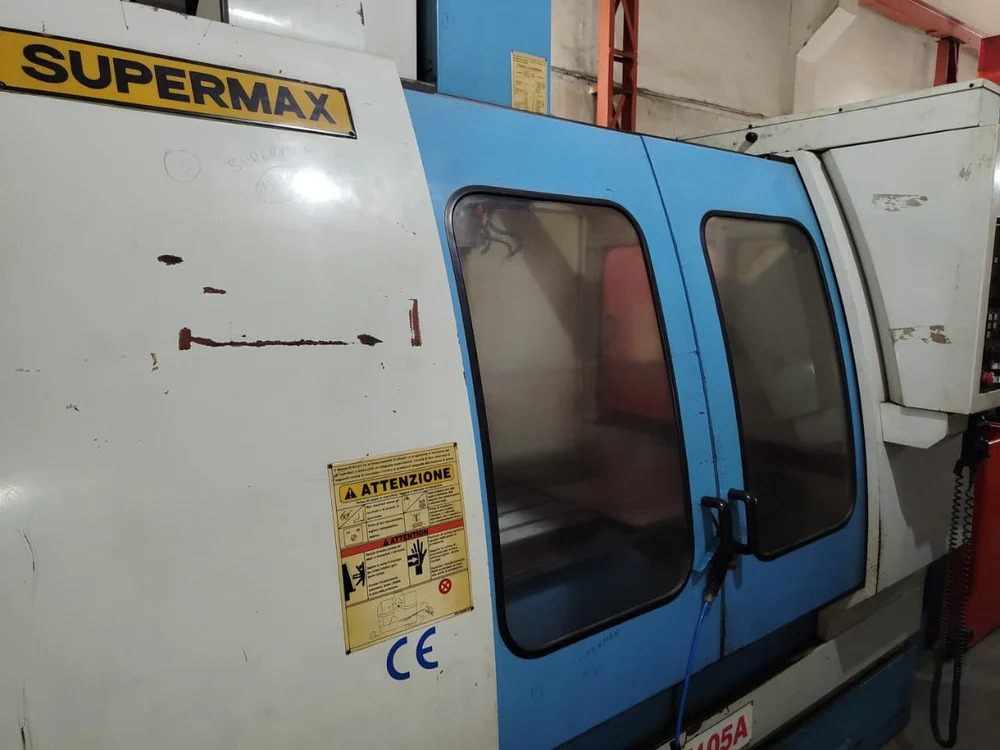

USED IMPORTED VMC "SUPERMAX MAKE" EXTRA HEAVY DUTY 7500KGS WEIGHT. ORIGINAL COLOUR OF MACHINE.
NO BACK LASH IN SLIDES. MACHINE WITH 24ATC ARM TYPE WITH OIL CHILLER, COOLANT ARRANGEMENT, AUTO LUBRICATION, CHIP CONVEYOR, COMPLETE. CAN BE TESTED UNDER POWER.




Advanced Machining Precision

Achieve exceptional accuracy with the VMC's programmable spindle and servo-driven axes. Its rigid welded frame and high-performance control system (Fanuc/CNC) consistently deliver precision up to 0.01 mm, making it ideal for complex metalworking and tooling tasks.


Reliable Safety and Simplified Operation

Designed with industrial safety in mind, this VMC features a full safety enclosure, sliding front doors, and a mechanical safety lock. The centralized automatic lubrication and integrated coolant system lower maintenance demands, while the digital display and keypad streamline operator control.


Robust Versatility for Industrial Needs

Compatible with major CAM applications, this CNC VMC covers a wide range of production requirements-from precision machining to medium-sized part manufacturing. With variable spindle speed and rapid tool changes, it adapts seamlessly to diverse metalworking challenges.

FAQ's of Used Vmc Machine:


Q: How does the automatic tool changer on this VMC improve machining efficiency?

A: The automatic tool changer (ATC) accommodates 16-24 tools, enabling rapid switching between operations without manual intervention. This boosts productivity and reduces downtime, making high-mix, precision jobs faster and more efficient.

Q: What types of parts and applications is this VMC best suited for?

A: This VMC is ideal for medium-sized parts and excels in precision metalworking, tooling, and component manufacturing across industries such as automotive, aerospace, and general engineering due to its high accuracy (0.01 mm) and robust build.

Q: When should routine maintenance be performed on the machine?

A: Routine maintenance should follow periodic schedules in line with industrial standards, focusing on lubrication, coolant management, and mechanical inspection. The automatic centralized lubrication system simplifies some maintenance tasks, extending component lifespan.

Q: Where can this machine be exported or supplied from?

A: This machine is available for immediate export or supply from India, through established exporters, manufacturers, and suppliers specializing in used CNC and VMC equipment.

Q: What is the process for integrating the machine into an existing workshop?

A: Integration involves connecting the electrical supply (380-415V, 50/60 Hz), setting up the digital control system (Fanuc/CNC), installing software compatible with standard CAM applications, and aligning the enclosure and sliding doors for safe operation.

Q: How does the machine's safety enclosure benefit users?

A: The full safety enclosure, equipped with sliding doors and safety locks, protects the operator from moving parts, coolant splash, and debris, significantly enhancing overall workplace safety while ensuring easy access for setup and maintenance.

Q: What connectivity options are available for data exchange or CNC upgrades?

A: Depending on its control unit, the VMC supports data transfer and software upgrades via RS232, USB, and Ethernet ports, allowing seamless integration with computer networks and CAM programming systems.
